How to remove and install gearbox difference housing?

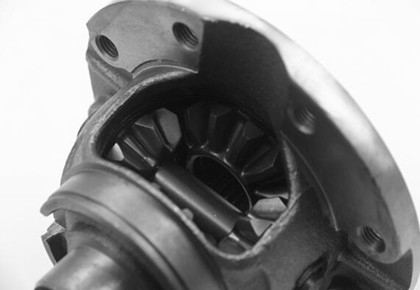

  The gearbox difference housing mainly has a left and right half-axis gear, two planetary gears and gear frames, which are set to adjust the speed difference of the left and right car wheels. So how do we disassemble and install it?

  First, disassemble

  When disassembling, you need to use a suitable sleeve, the specifications of the sleeve are 17, 18, 22, 24, etc., pay attention to the screw diagonal disassembly and tool when disassembling.

  1. Remove the active hyperbolic gear connection flange and oil seal, the tapered gear bearing housing, the active hyperbolic gear can be dismantled.

  2. Remove the driven double curve gear bearing cover, remove the slave double curve gear assembly, and screw down the differential housing shell screw decomposition differential housing.

  Second, assembly

  At the time of assembly, it is necessary to pay attention to the assembly order to be installed back to the components, and the components that are removed will be installed first.

  1. Clean the parts, especially to clean the impurities and foreign matter.

  2. Assemble the differential housing, first install the driven double curve gear, then install the driven gear bearings, and adjust the preload force of the slave gear bearing.

  3. After the active hyperbolic gear and the oil seal are installed, it should be adjusted to adjust the active gear bearing pretty.

  4. Install the active hyperbolic gear, perform the gasket between the active cone gear bearing housing and the main decelerator housing, adjust the nut on both sides of the jewele.

  If you are reading an article, you still don't know how to do it, please ask your professional maintenance personnel to handle it.
