Difficulties in Processing of Gearbox Differential Housing

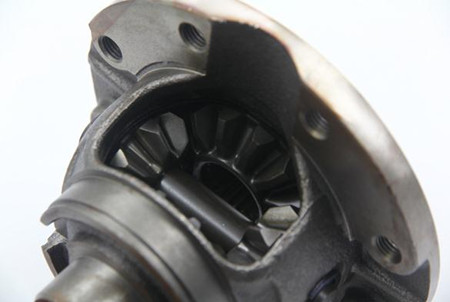

　　The gearbox differential housing is an indispensable part in the car, but it is not easy to process this part. By analyzing the structure of the part, it can be found that the difficulty of its processing lies in the internal spherical counterbore and plane counterbore.

　　At present, the common processing method is to use special machines and non-standard tools for processing. The specific processing steps are:

　　Grab the tool body into the workpiece with the manipulator, then the tool handle extends from the side and clamps the tool. After the manipulator withdraws, the processing starts in the left and right directions. After the processing is completed, the manipulator grasps the tool body, the tool handle is withdrawn, and the manipulator grasps the tool body and withdraws. artifact. But whether it is a special machine or a non-standard tool, the processing cost is relatively high.

　　If a reverse scraper is used, qualified parts can be machined efficiently and easily, which is very economical. The specific processing sequence is:

　　1. The spindle rotates forward, with low speed and low feed, so that the tool bar can pass through the machined hole and reach a safe position.

　　2. The spindle is reversed, the rotation speed is low, and the tool holder is opened.

　　3. Increase the speed and open the cutting fluid.

　　4. Normal feed, reverse scraping plane (spherical).

　　5. Return to the safe position, reduce the speed, and turn off the cutting fluid.

　　6. The spindle rotates forward, the speed is low, and the tool holder is closed.

　　7. With low feed, lift the cutter bar.

　　Through the inspection of the processed gearbox differential housing, the size and surface roughness of the parts can meet the design requirements of the drawings.
