How to check the gearbox shift fork clearance?

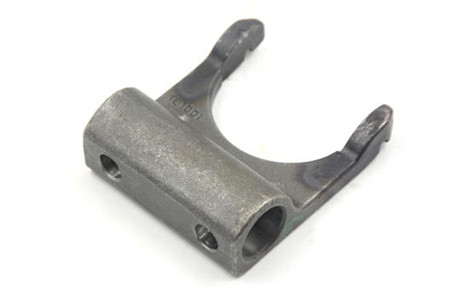

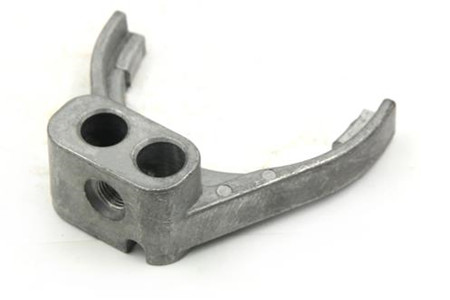

　　For a car shift fork is a very important part, once the problem, it will affect the safety and stability of the vehicle. How to check the gearbox shift fork clearance?

　　1. Measure the gap between each fork and the matching synchronizer gear sleeve. If the clearance exceeds the maintenance limit (1.0mm), proceed to the next step.

　　2. Measure the thickness of the shift fork pin.

　　If the thickness of the fork pin is not within the standard range, replace the new fork.

　　If the thickness of the fork pin is in the standard range, replace the new synchronizer sleeve.

　　3. Measure the gap between the fork and the shift arm (shift finger). If the clearance exceeds the maintenance limit (0.6mm), proceed to the next step.

　　4. Measure the width of the shift arm.

　　If the width of the shift arm is not within the standard range, replace the new shift arm.

　　If the width of the shift arm is in the standard range, change the new shift fork or shift pick.

　　After reading it, I believe everyone should know how to check the clearance of the gearbox shift fork.
