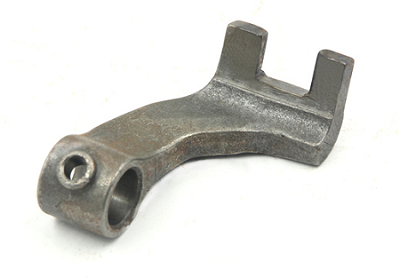

How does the automotive gearbox shift blocks work?

With the improvement of people's living standards, the shifting comfort of automobiles is becoming more and more concerned, and the shifting performance of the car can be improved by the function of shifting the Gearbox shift blocks of the transmission. This method is simple to implement and has a low cost.

Arrangement form of automotive gearbox shift blocks transmission:

One type of gearbox shift blocks is that the balance block is horizontally arranged with the shifting rocker arm, the gear shifting rocker arm moves in the horizontal plane, the weight of the balancing block does not work during the movement, and one kind is the balance block with the shifting rocker arm Non-horizontal arrangement, the shift arm of the gearbox moves on a non-horizontal plane, and the weight of the counterweight does work during movement.

The working principle of automotive gearbox shift blocks transmission:

In the actual shifting process, the force of the shift rocker arm is unbalanced. In the stage of shifting, the shifting resistance is small. When entering the synchronous stage, the shifting resistance will increase suddenly and the shift will be completed after the synchronization is completed. Resistance will decrease again.

In order to improve the feel of the shift, the process in which the resistance suddenly increases must be slowed or eliminated, making it difficult to feed back to the driver's shift handle, thereby improving the shift performance.
